Peugeot 406 Coupe Indiglo Plasma Custom Dial Kits

D9 chassis cars from late 1999 to 2004 VDO speedo





What makes this dial special?

The rev counter glows at night either red or yellow..



Available with

1. Plasma indiglo backlighting for the best effect abd bightest rev     counter glow.

2. Loose dial ( can suit some  early VDO cluster models only )



RED indiglo plasma glow dial kit for Peugeot 406 coupe D9



Yellow glow rev counter PLASMA

Peugout 406 speedo instrument dial kit

1. Dial - can be purchased seperately

2. Plasma Backlighting  discs & 12v power inverter

3. Full kit Dial + plasma back lighting kit (1+2)



Best result achieved when dial bought together with plasma lighting kit to avoid shadows caused by original lighting when rev counter illuminates.



*****************************************************************

Please note:

If self fitting you do this at your own risk. If you do not have the necessary tools or skills to perform this then we recommend that you have it fitted by a specialist. You will need to confirm your 12v power supply dependent on your cluster, this switches the plasma lighting on and off.



Some tools will be needed to remove the speedo and perform the modification. Always wear appropriate safety equipment when using tools. estimated 3 hours of work start to finish.

*****************************************************************



Below: Dial with plasma electronics

406 coupe custom kit Peugeot 406 D9

Click able links below:-

1. Photo: Gallery Red dial MPH UK

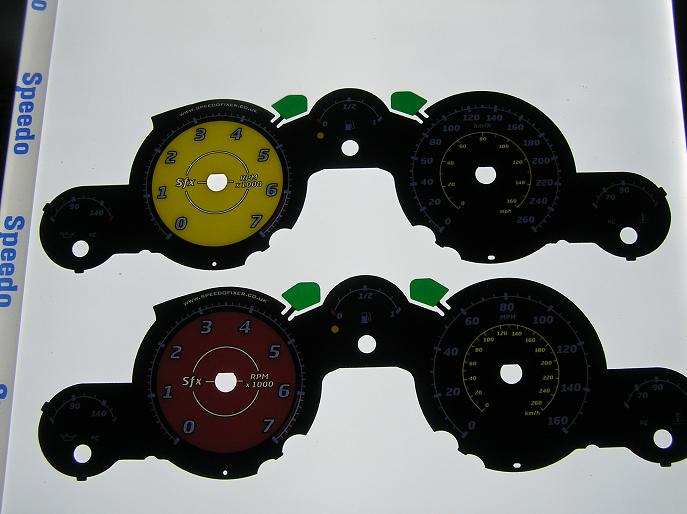

2. Photo KMH design Red and Yellow

3. Photo:  Gallery Yellow  here (V6      coupe VDO 2000)

4. Video: on youtube V6 coupe yellow night illumination PLASMA

5. Video: Day shot V6 coupe yellow dial

Available for D9 406 petrol manual cars from year 2000 -other types please contact us for further info

If you like the videos please rate it  on youtube - thanks

There are several makes of speedo instrument in the cars :-

This product fits the VDO speedo cluster

Peugeot 406 coupe V6

spedo dial faces plasma lighting

Tech Specs dial fitting photos and cluster internals

The VDO 2000 to 2001(bulb illumination)  cluster differs from 2002 to 2004(led backlighting as standard) , circuit board and illumination differences exist between earlier 1999 and 2001-2004 cars. Change over exists on the models around 2000.

The dial can work in both types of clusters.



The later 2001 onwards speedo  uses LED  to illuminate the dials. We recommend the plasma lighting kit add on to get the best results when using the dial for this combination.



Our dials have been designed for manual gearbox cars only and we have only printed them for petrol engines speedos showing 7k on the rev counter-

Video: on youtube V6 coupe yellow night illumination PLASMA

Video: Day shot V6 coupe yellow dial

Taking a speedo apart

https://youtu.be/aY20Fn0kQE4

Although we have fitted them to diesel cars ,

if you use the petrol dial on a diesel car it will work but the rev counter will go to 7k instead of 6k.

We have fitted this for some customers who were ok with this.

It is possible to use the illumination original bulbs on the VDO (cluster with rear  twist in bulbs ) version VDO  1999/ 2000 and not use plasma cicuitry

********but the  lighting effect is not as good****- see gallery no.2 - using bulbs and cluster specifics below:-

The youtube video demonstrates  the dial with plasma lighting and shows more vibrant colors >> hence we recommend plasma options.

Both options with/without plasma need cluster housing modifications but at different locations.



The plasma option will need some modification to the speedo cluster housing as detailed in our pics. Essentially some holes cut out to run the cables through and some soldering to some points for the power supply 12v. PRND housing structure is not affected as the disc will sit over it. Hence it can only be used for manual cars so the gear selector can be used on the cluster.

Cluster specifics:

1. VDO 1999/2000 early cluster type that

uses bulbs (twist in T5 bulbs at the rear see more info here

2. VDO 2001/2004 type LEDS - can only

use plasma electronics more here

If your model is a late VDO  with LED then you

must use plasma pack dial kit +plasma backlighting

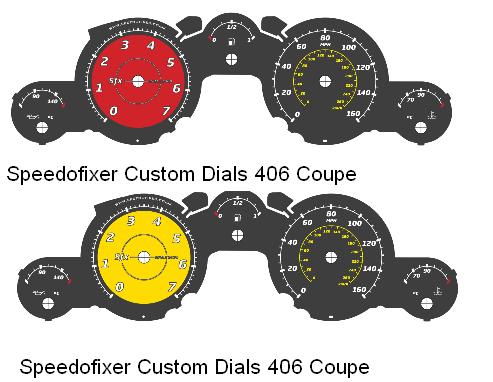

Peugeot 406 406 coupe D9 Dial Kit  Designs and Formats

Speedo below is the 1999 VDO speedo that uses twist in bulbs.

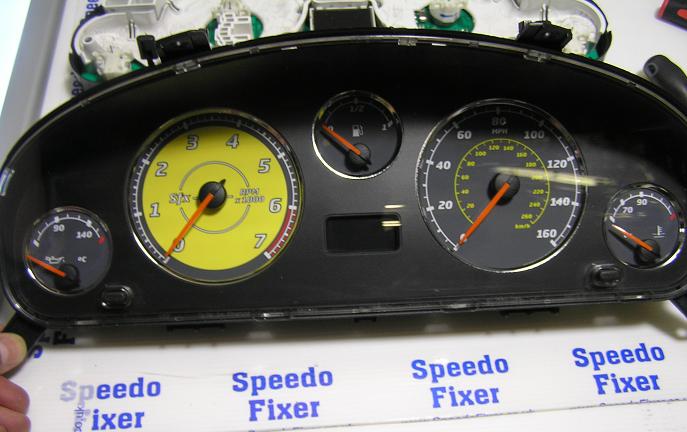

Below: Fitted to our car being tested.

this photo with indiglo plasma indiglow lighting on the 1999 car

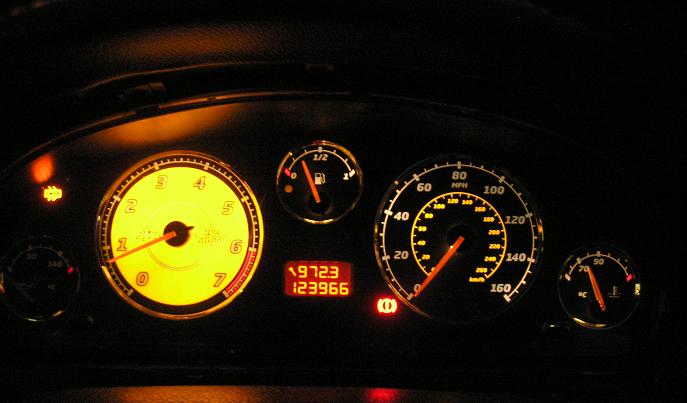

Above : Night time view in our 406 1999 car  using plasma option

Below: Yellow dial from 2000 car using standard light bulbs

the lighting is not as bright and crisp and there is some shadowing

Above: 1999 bulb lit cluster illuminated with yellow bulbs

 Product specs and compatability:-

  • will suit 5 gauge high spec speedo cluster
  • Petrol engines only -can fit diesel but rev counter differs
  • UK spec MPH dual speed mph + small kmh
  • Euro Spec  KMH -  dual speed with mph on inner side
  • Manual gearbox only - no P R N D display
  • OEM quality materials & production
  • Two colors red or yellow
  • Fits VDO gauges year late 1999 onwards
  • D9 chassis
  • Will not fit Sagem 1997 / 1998  made speedometer

 May suit other non-coupe 406 models with High spec speedo with oil temp gauge.

406oc.co.uk • Peugeout 406 Coupe owners club can be found here

www.406oc.co.uk/

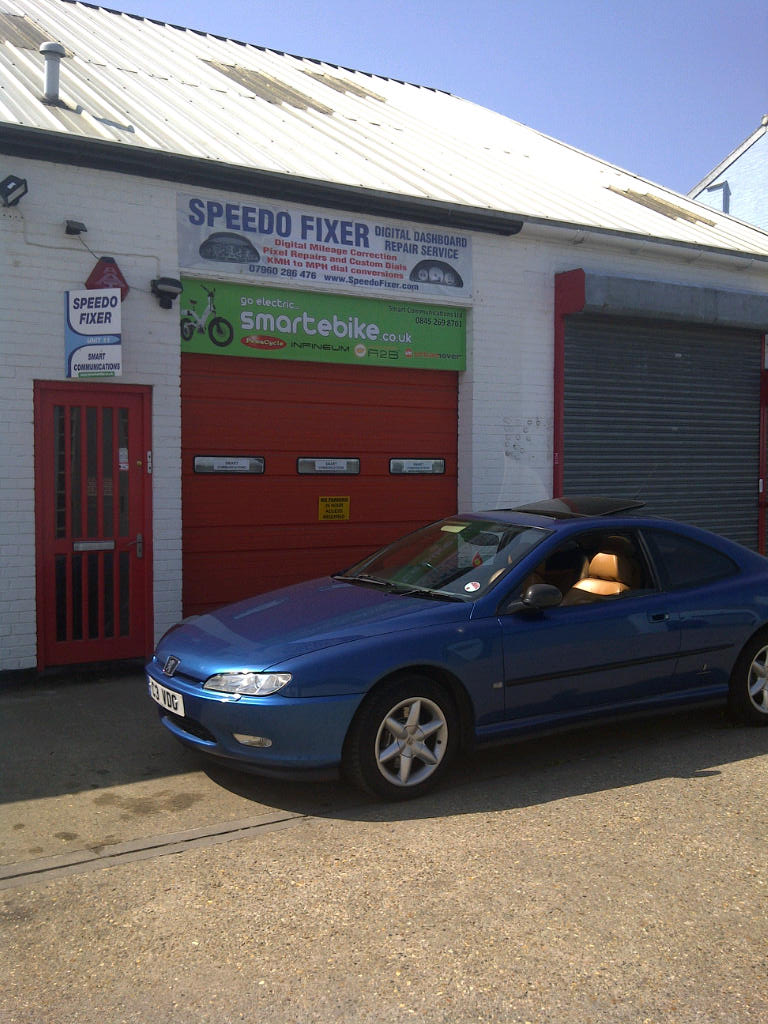

 Our car above 406 V6 1999



*****************************************************************

Please note:

If self fitting you do this at your own risk. If you do not have the necessary tools or skills to perform this then we recommend that you have it fitted by a specialist.



Some tools will be needed to remove the speedo and perform the modification. Always wear appropriate safety equipment when using tools.

*****************************************************************
